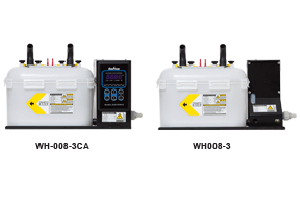

WH Series:
FH series products are the electrode type humidifiers that have an improved design compared to other existing products. The height of the unit is reduced by more than 50% to allow easy installation on existing air-conditioners, coolers or heaters. They are easy to be maintained due to their completely sealed container structure. Since the product is designed with the ratio similar to conventional electric heating type humidifier, it can easily replace existing electric heating type humidifier.
Features:
Applicable on horizontal space with compact size
Stainless special steel electrode
Quick respond by six electrode
Easy maintenance with openable cylinder structure
Specifications:
MODEL
|
Capacity
|
Heating Voltage
|
F.L.C
|
Power Consumption
|
Steam Outlet
|
Over Current (Provokes auto-drain)
|
WH###-# (Without Controller)
|
4㎏/h
|
1~, 220V
|
13.7A
|
3.0kw
|
ø22 × 2
|
19.2A
|
4㎏/h
|
3~, 220V
|
8.0A
|
3.0kw
|
ø22 × 2
|
11.2A
|
|
8㎏/h
|
3~, 220V
|
15.0A
|
6.0kw
|
ø22 × 2
|
21.0A
|
|
4㎏/h
|
3~, 380V
|
4.5A
|
3.0kw
|
ø22 × 2
|
6.3A
|
|
8㎏/h
|
3~, 380V
|
9.0A
|
6.0kw
|
ø22 × 2
|
12.6A
|
|
WH###-#CA (With Controller)
|
4㎏/h
|
1~, 220V
|
13.7A
|
3.0kw
|
ø22 × 2
|
19.2A
|
4㎏/h
|
3~, 220V
|
8.0A
|
3.0kw
|
ø22 × 2
|
11.2A
|
|
8㎏/h
|
3~, 220V
|
15.0A
|
6.0kw
|
ø22 × 2
|
21.0A
|
|
4㎏/h
|
3~, 380V
|
4.5A
|
3.0kw
|
ø22 × 2
|
6.3A
|
|
8㎏/h
|
3~, 380V
|
9.0A
|
6.0kw
|
ø22 × 2
|
12.6A
|
|
