OEM Type
کد کالا : OH Series
ساخت : 0
گارانتی : 0
اصالت کالا : 0

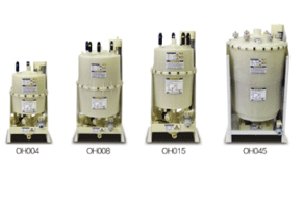

OH Series:
OH series products are newly developed OEM electrode humidifiers that are designed to have the structure and the systems that allow the humidifier to be applicable in any production setting. The series products have been selected by leading domestic and foreign companies because of their special features that include no significant restriction in water quality and free selection of humidification cylinders depending on water conductivity and supply voltage. They have wider humidification capacity range of 2.0 ~ 45kg/h and allow proportional control operation (4-20mA / 0-10V) without an external electrical device due to a dedicated controller (E-HUMS) adopted
Features:
Easy installation
Repulsion start type Pump
Automatic / Manual draining
ON/OFF, Proportional control (4-20mA / 0-10V)
PLUG-IN coupling scheme
Specifications:
| MODEL [OH###-#] | 004-1(6) | 004-2(5) | 006-1(6) | 008-2(5) | 015-2(5) | 030-2(5) | 004-3(7) | 008-3(7) | 015-3(7) | 030-3(7) | 045-3(7) | |
| Main Voltage | [V~] | 220 - 230 | 380 - 480 | |||||||||
| Maximum capacity | [kg/h] | 4 | 4 | 6 | 8 | 15 | 30 | 4 | 8 | 15 | 30 | 45 |
| Phase / Wire | 1/2 | 3/3 | 1/2 | 3/3 | 3/3 | 3/6 | 3/3 | 3/3 | 3/3 | 3/6 | 3/6 | |
| Power consumption | [kw] | 3 | 3 | 4.5 | 6 | 11.3 | 22.5 | 3 | 6 | 11.3 | 22.5 | 33.8 |
| Rated current | [A] | 13.7 | 7.9 | 20.5 | 15.8 | 29.5 | 56.5 | 4.6 | 9.1 | 17.1 | 34.2 | 51.3 |
| Over current (140%) | [A] | 19.1 | 11 | 28.6 | 22 | 41.3 | 82.7 | 5.7 | 11.4 | 21.4 | 42.7 | 64.1 |
| Cylinder/Steam nozzle | [ea] | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Gauge of steam hose | ID[㎜] | 22 | 22 | 22 | 22 | 30 | 45 | 22 | 22 | 30 | 45 | 45 |
| Gauge of Condensate hose | ID[㎜] | 9.5 | 9.5 | |||||||||
| Width | [㎜] | 240 | 240 | 240 | 240 | 290 | 360 | 240 | 240 | 290 | 360 | 360 |
| Depth | [㎜] | 232 | 232 | 232 | 232 | 256 | 330 | 232 | 232 | 256 | 330 | 330 |
| Height | [㎜] | 456 | 456 | 516 | 516 | 576 | 665 | 456 | 516 | 516 | 665 | 665 |
| Weight | [kg] | 3.7 | 3.7 | 4.2 | 4.2 | 5.5 | 14.5 | 3.7 | 4.2 | 5.5 | 14.5 | 14.5 |
| Weight in operation | [kg] | 7.5 | 7.5 | 9.5 | 9.5 | 16.5 | 33.9 | 7.5 | 9.5 | 16.5 | 33.9 | 33.9 |
| Water pipe | [inch] | OD 1/4, 6.325[mm] | ||||||||||
| Drain hose | [㎜] | Heat resistant hose, ID 22 | ||||||||||
| Draining pressure | [kPa] | 200-800, 2~8[bar] | ||||||||||
| Draining flux | [ℓ/min] | 7.5 | ||||||||||
