Stand Alone
کد کالا : AH Series
ساخت : 0
گارانتی : 0
اصالت کالا : 0
Stand Alone Type Humidifier
Easy Installation
Precise Control / Auto Draining
ON/OFF, Proportional Control
Safety, Reliability
Various Capacity
AH Series products are stand-alone electrode type humidifiers that are designed as the control box integrated structure for user convenience. They can be easily installed on air conditioning units that are not equipped with humidifiers or in places where humidifiers are needed. The humidity sensor attached to the unit allows automatic operation by utilizing the external relative signal or humidity valve. The products consist of the standard type products with the capacity of 2.0kg/h ~ 90kg/h and non-standard products with the capacity of 91 kg/h ~ 360kg/h.
Easy and convenient manipulation of display
Controller's display includes menu selection, compelled drainage, setting, operation, alarming breaker and etc, and can be operated easily by any user.
Precise control
Micro Processor enables the precise control of the humidifier to the maximum efficiency, and energy saving.
Drainage pump mounted
Drainage pump mounted prevents foreign materials' piling-up inside the cylinder, and free drainage can be done wherever the cylinder is positioned.
Security and reliability
Security-and-reliability based design has passed through the stringent security standard of Europe to obtain CE mark.
Auto washing
Automatic washing system prevents accumulation of foreign matters inside the cylinder that may be caused by long time operation, and clean conditions can be maintained.
Cylinder structured for easy mounting/demounting
Cylinder has the structure that can be dismantled, and thus there is little trouble with its cleaning which allows its durability extended.
Applications
Offices
Printing
Food processing
Computer rooms and Telephone exchanges
Photography
Projection room (Theater)
High Tech chip Manufacturing
Wood working
Museums
Bakery and blast freezing

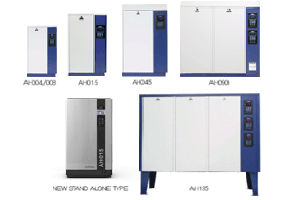

Various Capacity
Model Code Classification
Specification
| MODEL(AH###_#) | 004-1(6) | 004-2(5) | 006-1(6) | 008-2(5) | 015-2(5) | 030-2(5) | 060-2(5) | |
| Maximum Capacity | [kg/h] | 4 | 4 | 6 | 8 | 15 | 30 | 60 |
| Mian Voltage | [V~] | 220-230 | ||||||
| Phase/Wire | 1/2 | 3/3 | 1/2 | 3/3 | 3/3 | 3/6 | 3/6 | |
| Power Consumption | [kw] | 3 | 3 | 4.5 | 6 | 11.3 | 22.5 | 45 |
| Rated current | [A] | 13.6 | 7.9 | 20.5 | 15.7 | 29.6 | 59 | 118 |
| Over Current[140%] | [A] | 19.1 | 11 | 28.6 | 22 | 41.3 | 82.7 | 165 |
| Cylinder/Nozzle | [ea] | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Steam hose | ID[mm] | 22 | 22 | 22 | 22 | 30 | 45 | 45 |
| Condense hose | ID[mm] | 9.5 | ||||||
| Width | [mm] | 380 | 380 | 380 | 380 | 440 | 550 | 920 |
| Depth | [mm] | 260 | 260 | 260 | 260 | 320 | 375 | 375 |
| Height | [mm] | 610 | 610 | 610 | 610 | 710 | 890 | 890 |
| Weight | [kg] | 14 | 14 | 14 | 14 | 25 | 40 | 67 |
| Weight in operation | [kg] | 17 | 17 | 19 | 19 | 36 | 59 | 105 |
| Water pipe spec | [inch] | OD¼, 6.325(mm)/Non-Standard Option : 15A Socket, 5K 15A FLANGE | ||||||
| Drainpipe spec | [mm] | Heat-resisting hose, ID 22, / Non-Standard Option : 5K 25A, 5K 40A | ||||||
| Water Supply | [kPa] | 200-800, 2~8[bar] | ||||||
| Draining flux | [l/min] | 7.5 | ||||||
| * Rated-current and over-current(140%) values can be change by each voltage setting | ||||||||
| MODEL(AH###_#) | 004-3(7) | 008-3(7) | 015-3(7) | 045-3(7) | 090-3(7) | 035-3(7) | 180-3(7) | |
| Maximum Capacity | [kg/h] | 4 | 8 | 15 | 45 | 90 | 135 | 180 |
| Mian Voltage | [V~] | 380-480 | ||||||
| Phase/Wire | 3/3 | 3/3 | 3/3 | 3/6 | 3/6 | 3/6 | 3/6 | |
| Power Consumption | [kw] | 3 | 6 | 11.3 | 33.8 | 67.5 | 101.3 | 135 |
| Rated current | [A] | 4.6 | 9.1 | 17.1 | 51.3 | 103 | 153.8 | 205 |
| Over Current[140%] | [A] | 6.4 | 12.8 | 23.9 | 71.8 | 144 | 215.4 | 287 |
| Cylinder/Nozzle | [ea] | 1 | 1 | 1 | 1 | 2 | 3 | 4 |
| Steam hose | ID[mm] | 22 | 22 | 30 | 45 | 45 | 45 | 45 |
| Condense hose | ID[mm] | 9.5 | ||||||
| Width | [mm] | 380 | 380 | 440 | 550 | 920 | 1500 | 1100 |
| Depth | [mm] | 260 | 260 | 320 | 375 | 375 | 520 | 620 |
| Height | [mm] | 610 | 610 | 710 | 890 | 890 | 1260 | 2060 |
| Weight | [kg] | 14 | 14 | 625 | 40 | 67 | 158 | 316 |
| Weight in operation | [kg] | 17 | 19 | 36 | 59 | 105 | 216 | 358 |
| Water pipe spec | [inch] | OD¼, 6.325(mm)/Non-Standard Option : 15A Socket, 5K 15A FLANGE | ||||||
| Drainpipe spec | [mm] | Heat-resisting hose, ID 22, / Non-Standard Option : 5K 25A, 5K 40A | ||||||
| Water Supply | [kPa] | 200-800, 2~8[bar] | ||||||
| Draining flux | [l/min] | 7.5 | ||||||
| * Rated-current and over-current(140%) values can be change by each voltage setting | ||||||||
